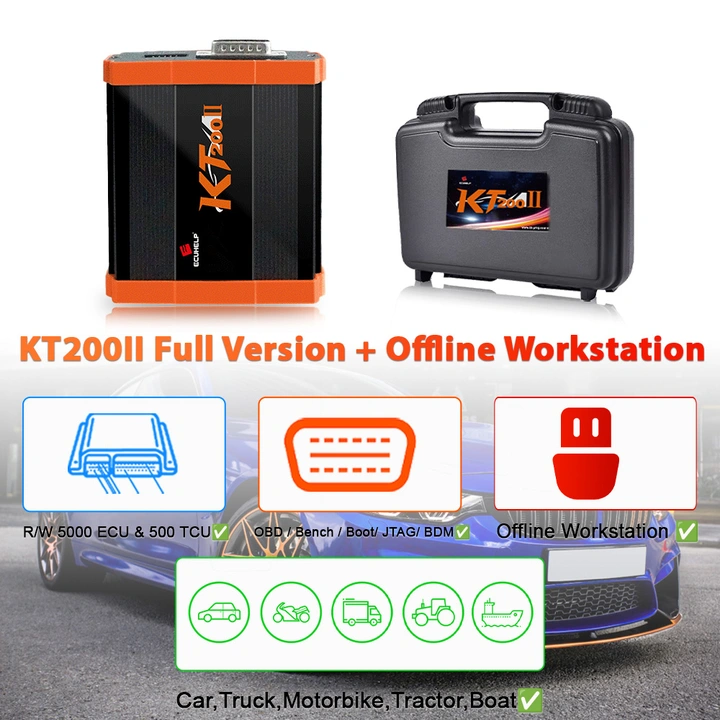

ECUHELP KT200II Full Version with Offline Dongle for Car Truck Motorbike Tractor Boat,R/W ECU Bench / OBD / BOOT / BDM /Jtag Mode

ECUHELP KT200II Full Version with Offline Workstation Enabled Software:

Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD.Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear

Choose KT200II Auto Version to have no the software: Tractor OBD, Boat OBD, Motorbike OBD

Part 1. KT200II Update Log

ECUHELP KT200II Offline Update Log:

KT200 II Update January 8, 2024

FOR PSA SID807 / SID807EVO DRIVER.

NEW OBD DRIVER NISSAN RENAULT EDC17C45

NEW OBD DRIVER FOR PSA DELPHI DCM7.1A

NEW FUNCTIONS UPGRADE/DOWNGRADE FRF/ODX/SGO FILES FOR VAG GROUP

BOOT MODE ME17 DR, BAIC, CHERY MY 2020

NEW BENCH MODE DRIVER FOR TCU 7G TRONIC VGS-NAG2

NEW BENCH MODE DRIVER FOR TCU 9G TRONIC VGS-NAG3

NEW BOOT MODE DRIVER FOR TCU FCA 62TE

NEW OBD DRIVER FOR DCU17 CV51 JCB

SUZUKI DENSO 33920-76XX

For the details, please refer to: KT200II Update on January 8, 2025

KT200 II Offline Update November 2025 year:

KT200II upgrades new protocols and commits to regularly updating more.

Resolves automatic checksum issues in the KT200, enhancing read/write efficiency.

There was a significant increase in virtual files available on the server.

Enhance ECU Protection includes immediate alerts for operational errors, ensuring safer usage.

Faster and more efficient server connectivity.

Reliable reading and writing via OBD.

Now supports DELPHI DCM7.24 ECU

Introduces the Tricore Clone feature.

For the details, please refer to KT200II Update November 2023 Year

Frequently Asked Questions about KT200 II:

Are the Accessories and Bench Box of KT200 Compatible with KT200II?

Yes, they are fully compatible.

Is the KT200II PCB Compatible with the Old Case?

No, they are not compatible.

Part 2. KT200II Features

Why KT200II is Preferred? Let’s read some Customer Feedback:

1. KT200II works perfectly with less dropout and more of a chance of not losing the server.

2. KT200II has one offline dongle. KT200II/KT200 works offline, 90% of the work was done Offline. And it worked without any flaws. Great tool.

3. The software is not only locked to 3 or 4 computers. You will own the hardware and use it wherever you want.

4. It does VR reads (Download ECUHELP KTflash for VR files).

5. The software is running stable, and the cable is built of good quality.

Note:

1. KT200II software is not compatible with KT200.

2. KT200II full version with offline dongle can works offline, which means that you don’t need to be connected to the Internet when using the offline software.

3. Compatible operating systems: Windows 7. Widows 8/8.1.Windows 10, Windows 11

4. Minimum recommended requirements: CPU>2.5 GHz (lntel i5,7) RAM 8GB

5. KT200II Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish

Very Important: Before installation you need to disable your antivirus and turn off Windows Defender, including real-time protection on your computer..

ECUHELP KT200II Offline Software Installation Guide.

https://youtu.be/9tkPhaj3vFQ?si=am39SG-hQfR7OE6c

1, Plug the gray dongle, then install setup(in KT200ll offline setup)

2, copy all from TO USE folder to C:\KT200ll offline USER

3,Plug the white dongle,and run KT200ll offline software(in first running,you need connect network)

For the software, copy from the gray dongle or Go to ECUHelpShop and go to the download tab and download (disable firewall and anti-virus)

Be sure to install the online software first (one is to confirm that your device is the full version, and the other is to rule out computer problems). The online version can be opened, and the offline version can also be opened

Question: I installed kt200ii software on Windows 10 but app can not start.

Answer: Install USB driver from your installation. Restart computer, disable win defender abd firewall. Plug device into usb and power. Open app and WAIT…. It can take up to 1 minute to connect to server.

Part 4. KT200 II Update November, 2023

NEW FULL SYSTEMS FOR DELCO OPEL / CHEVROLET / GM ECUs

We have added to the list of DELCO bench protocols already present, also the complete management of the control units mounted on OPEL / CHEVROLET / GM

cars: DELCO E38 DELCO E67 DELCO E84 DELCO E92

The possible operations are: Micro + EEPROM reading Micro + EEPROM writing Recovery Checksums

NEW AUTOMATIC FUNCTION: TRICORE CLONE Added automation to clone the following control units with OTP zone adaptation and password:

√ FCA EDC17CP27

√ HYUNDAI / KIA MED17.9.8

√ IVECO EDC17 C69

√ JAGUAR MEDC17.9

√ JAGUAR EDC17CP11

√ LAND ROVER MEDC17.9

√ LAND ROVER EDC17CP11

√ SUZUKI MED17.9.63

√ TOYOTA MED17.9.52

NEW FULL SYSTEM DRIVERS FOR BOSCH TCU ECUs:

6L45 6L50 6L80 6L90

Mounted on cars:

Cadillac, Chevrolet, Holden, GM, GMC, Hummer, Pontiac.

Micro + EEPROM reading

Micro + EEPROM writing

Recovery

NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU

We have added complete management of the engine control unit mounted on Fiat / Abarth:

MARELLI 8GMC

The possible operations are:

Micro + EEPROM re

Part 5. What is KT200II?
What is KT200II?
Introduction to KT200II: KT200II is an ECU programmer designed for reading and programming engine control units (ECUs). Allows communication in multiple modes: Bench (or Service mode), OBD, Boot, BDM, JTAG, Full system via pinout. This tool offers a comprehensive solution for mechanics, with additional TCU package options for automatic transmission.
Functionality of KT200II:
Enables serial communication with Engine and Automatic Transmission control units via the OBD diagnostic socket.
Capabilities in ECU Management:
Read and write ECU data, read it in Bin encrypted format.
Modify ECU data arbitrarily for various purposes, including ECU cloning and ECU service.
The master version is personalized, allowing individual use without data unlocking for the slave.
Master Version of KT200II: A personal version of the device that can be used freely after purchase.
ECU Service Explained:
Chip tuning: to improve engine performance by modifying the data read out by the equipment The data is divided into: Stage 1 . Stage 2 and Stage 3
ECU maintenance: the data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device.
After reading the ecu data with kt200II, you can use third-party software to edit the ecu data
You can get the functions of ECU model query, wiring diagram search, virtual data download, DEMO download and free database from the ECUHELP 3.0.6 installer.

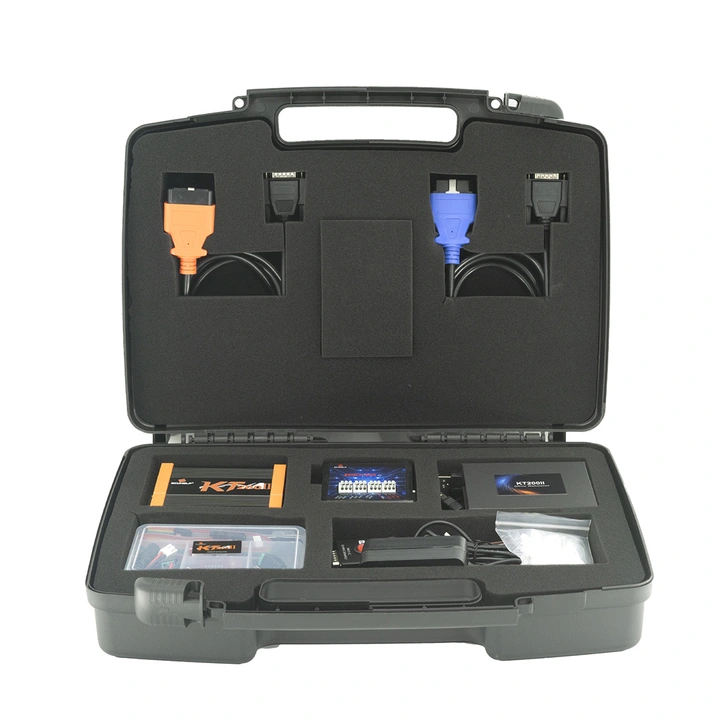

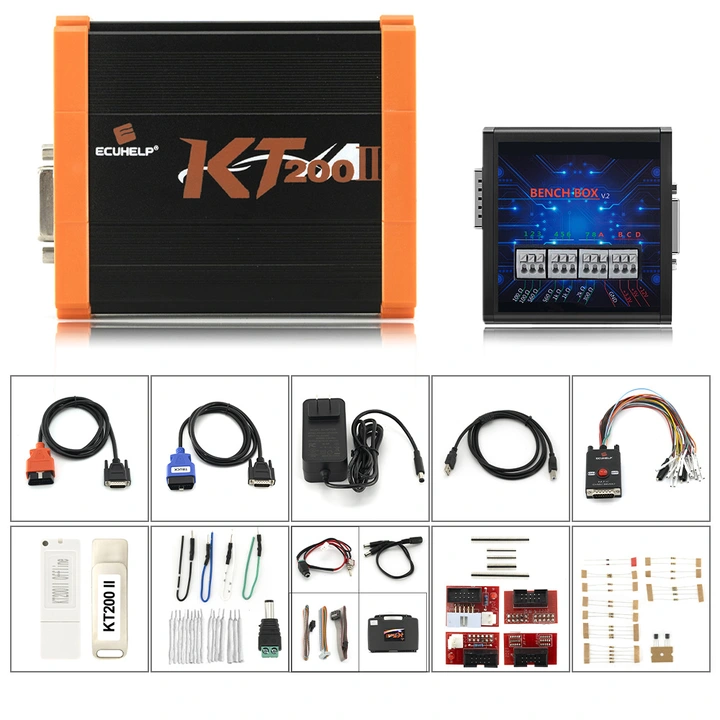

ECUHELP KT200II Offline Workstation Package Includes:
1pc x Master
1pc x BENCH box
1pc x Offline workstation
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters

Jabedul Dewan Trading is an authorized dealer for ECUHELP products, including the KT200II ECU programmer, based in Dubai, UAE.
Dealer Contact Information
Company Name: Jabedul Dewan Trading
Location: Dubai, United Arab Emirates
Primary Contact: Jabedul Dewan
WhatsApp/Phone: +971 52 144 0404 (Verified as a common contact point for local support and sales in the UAE).
Services Provided: Sales of genuine ECUHELP hardware (KT200II, KT Flash), local technical support, and protocol activations.
Product Overview: KT200II
The KT200II is a professional-grade ECU and TCU programming tool. Key features available through authorized dealers like Jabedul Dewan Trading include:
Version Options: Typically available in Auto Version (basic car/light vehicle support) or Full Version (includes trucks, tractors, and motorbikes).
Connectivity: Supports both Online and Offline work modes (offline requires a specific dongle).
Protocol Support: Extensive coverage for Bosch, Delco, and newer MG1/MD1 protocols.
Local Benefits: Purchasing through a local Dubai dealer often provides faster shipping (avoiding international customs delays) and direct access to regional technical assistance.
Note: Always verify current stock and warranty terms directly with the dealer, as ECUHELP frequently releases software updates and hardware revisions.
Are you looking for the pricing for the Full Version in AED, or do you need assistance with technical activation for a device you already purchased?
